SPECIFICATIONS

AI Functions: Motion Detection

Brand Name: MoGood Intelligent

Color Night Vision: No

Connectivity: IP/Network Wired

High Definition: 4.0 Megapixels

High-concerned chemical: None

IP Rating: IP66

Installation: Normal,Wall Mounted,Pendant Mount,Vertical Pole Mount,Corner Mount

Lens (mm): 2.8-12mm

Lens Quantity: Single Lens

Megapixels: 4MP

Model Number: DS-2DE2A404IW-DE3

Origin: Mainland China

Power Supply: With Poe

Scene: Indoor and outdoor

Style: Dome Camera

Supported Mobile Systems: Symbian,Windows Mobile,Android,iOS

Supported Operating Systems: Windows 98,Windows XP,Windows Vista,Windows 7,macOS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003

Zoom: 4X

Zoom type: Optical zoom

non WIFI Camera Model No: DS-2DE2A404IW-DE3

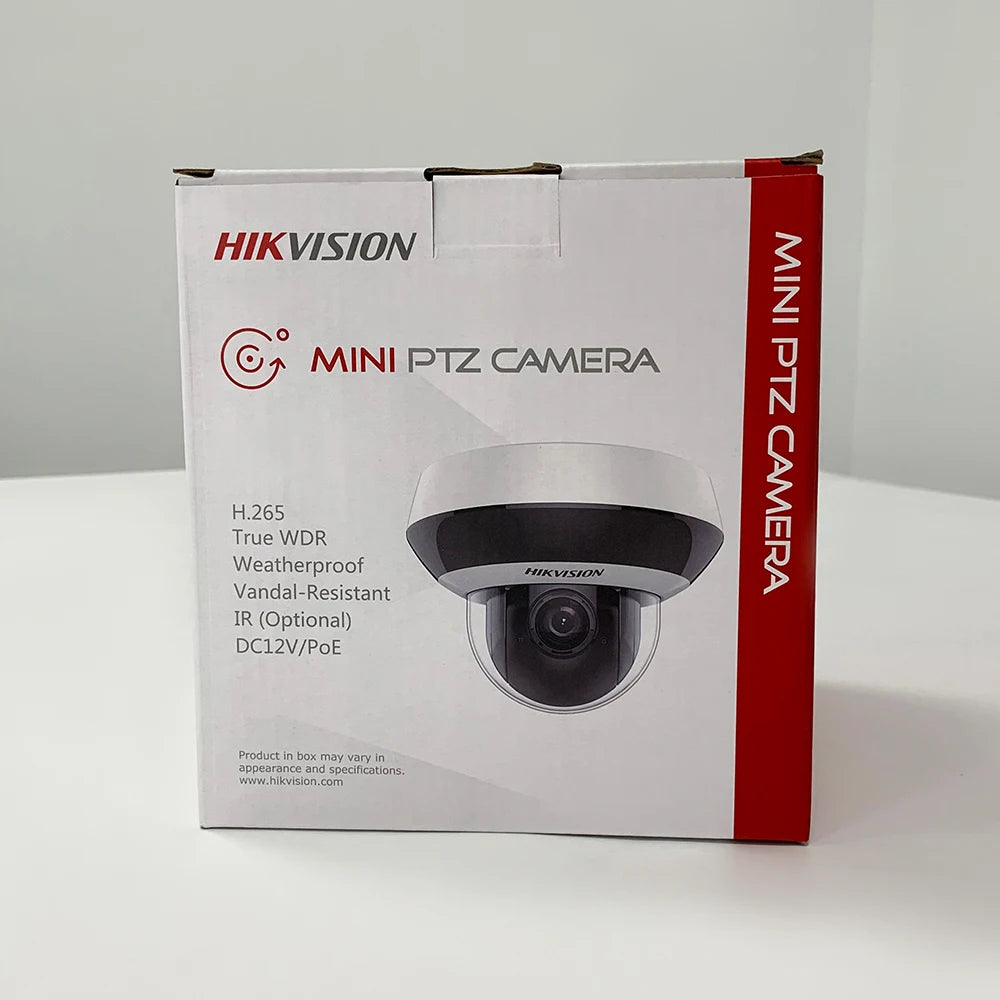

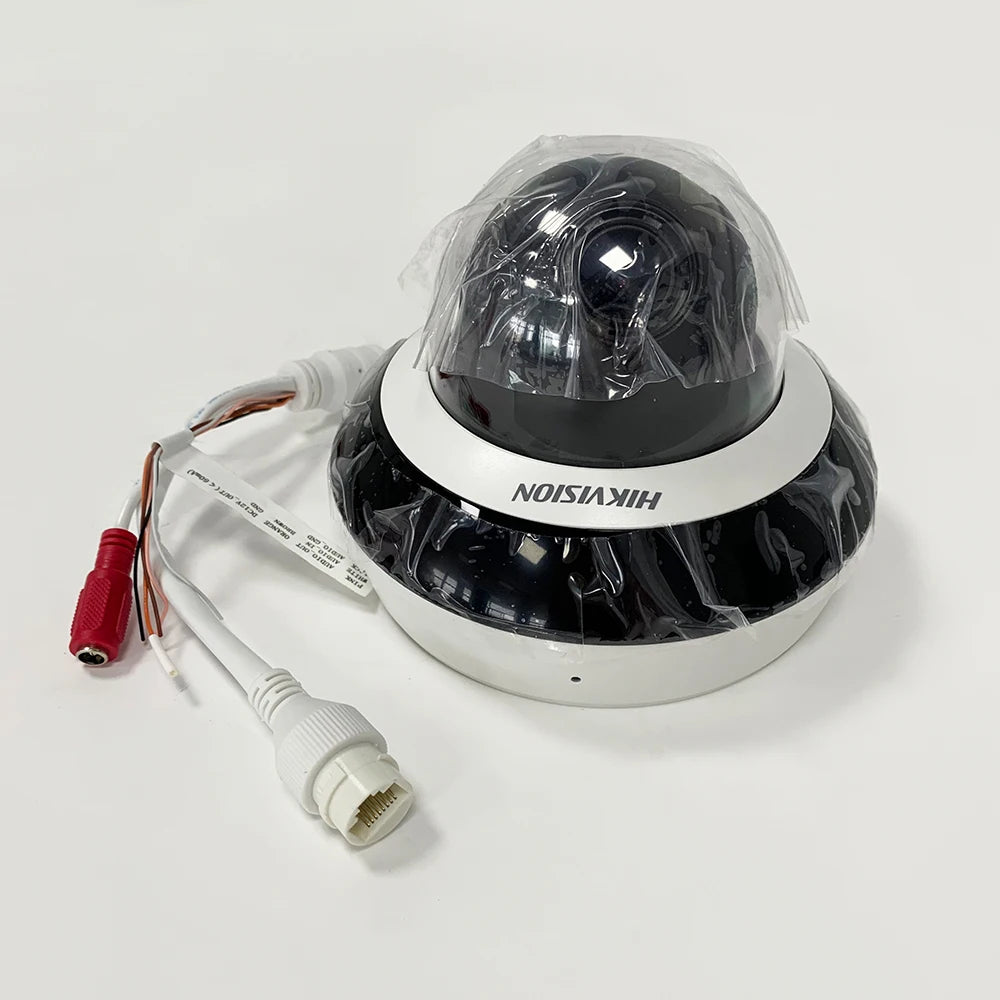

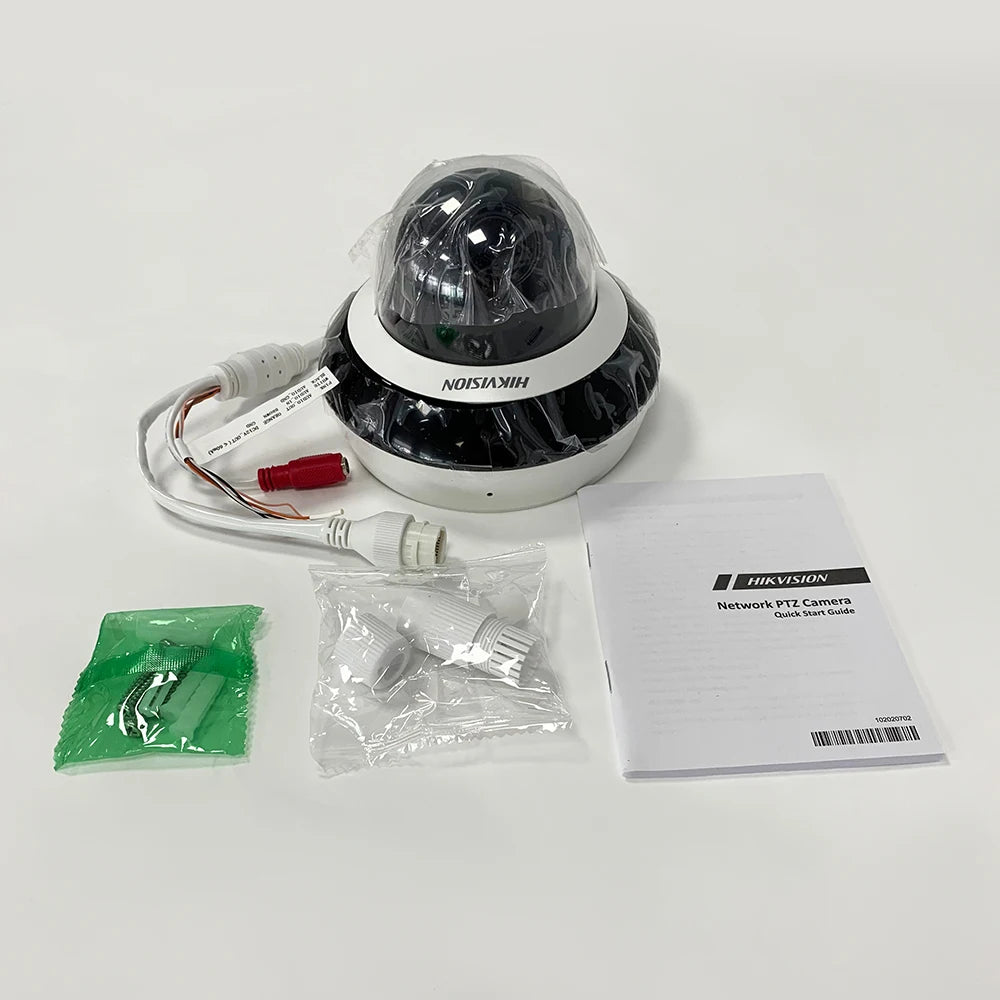

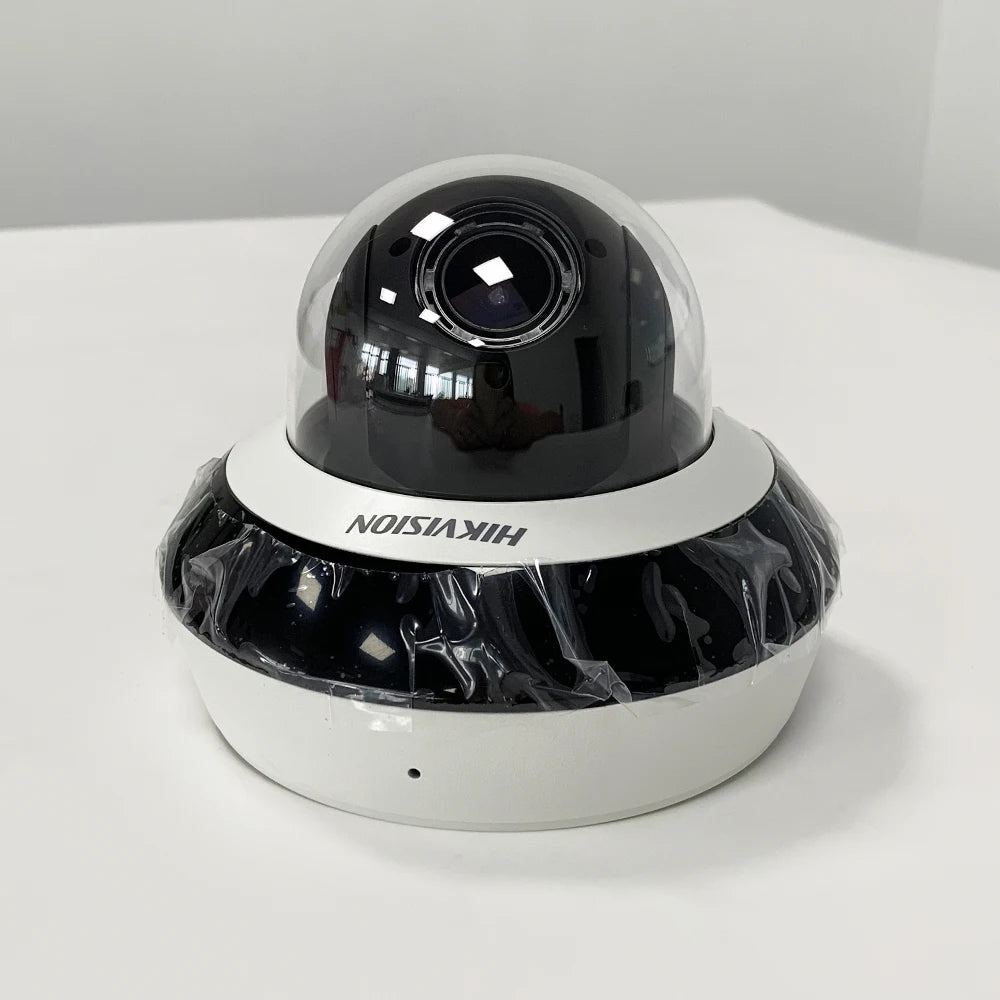

Hikvision 2-inch 4MP PTZ Camera 4x Zoom Mini Speed Dome IP Camera POE P2P DS-2DE2A404IWG1-E Replace DS-2DE2A404IW-DE3

TIPS:    It's non-wifi camera , cannot support WIFI

Key Features

• Camera

• Image Sensor1/2.8" Progressive Scan CMOS

• Max. Resolution2560 × 1440

• Min. IlluminationColor: 0.005 Lux @ (F1.8, AGC ON),B/W: 0.001 Lux @ (F1.8, AGC ON),0 Lux with IR

• Shutter Speed1/1 s to 1/30,000 s

• Day & NightIR cut filter

• Zoom4x optical, 16x digital

• Slow ShutterYes

•


• Lens

•


• Focal Length   2.8 to 12 mm

• FOVHorizontal field of view: 99.4° to 32.8°, vertical field of view: 51.7° to 18.4°, diagonal field of view: 119.9° to 37.5°

• Focus      Auto, semi-auto, manual

• Aperture  Max. F1.8

• Zoom Speed  Approx. 2 s

•


• Illuminator

•


• Supplement Light TypeIR

• Supplement Light RangeIR Distance: up to 20 m

• Smart Supplement LightYes

• IR Wavelength850 nm

• PTZ

• Movement Range (Pan)0° to 355°

• Movement Range (Tilt)0° to 90°

• Pan SpeedPan speed: configurable from 0.1° to 50°/s, preset speed: 50°/s

• Tilt SpeedTilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s

• Proportional PanYes

• Presets300

• Park ActionPreset,patrol scan

• 3D PositioningYes

• PTZ Status DisplayYes

• Scheduled Taskpatrol scan,Preset,dome reboot,dome adjust

• Power-Off MemoryYes

•


• Video

• Main Stream

  50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);

  60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);

  60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264/MJPEG

• H.264 TypeBaseline Profile/Main Profile/High Profile

• H.265 TypeMain profile

• Scalable Video Coding (SVC)H.264 and H.265 encoding

• Region Of Interest (ROI)1 fixed regions for main stream

•


• Audio

•


• Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC

• Audio Bit Rate64 Kbps (G.711),16 Kbps (G.722.1),32 to 160 Kbps (MP2L2),16 to 64Kbps (AAC-LC),16 Kbps (G.726)

• Audio Sampling Rate8 kHz

• Environment Noise FilteringYes

•


• Network

•


• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

• Simultaneous Live ViewUp to 6 channels

• APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

• User/HostUp to 32 users; 3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)

• Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)

• ClientiVMS-4200, HikCentral Pro, Hik-Connect

• Web BrowserChrome80+、Firefox80+、Safari13+、Edge89+

•


• Image

•


• Image Parameters SwitchYes

• Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

• Day/Night SwitchDay, Night, Auto, Schedule

• Wide Dynamic Range (WDR)120 dB

• SNR＞52dB

• DefogDigital Defog

• Image EnhancementBLC, HLC, 3D DNR

• Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable

• Regional FocusYes

• Regional ExposureYes

•


• Interface

•


• Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port

• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

• Built-In Microphone1 built-in microphone, picking up sounds in the radius up to 5 meters

• Built-In Speaker1 built-in speaker, with effective distance reaching max. 10 meters

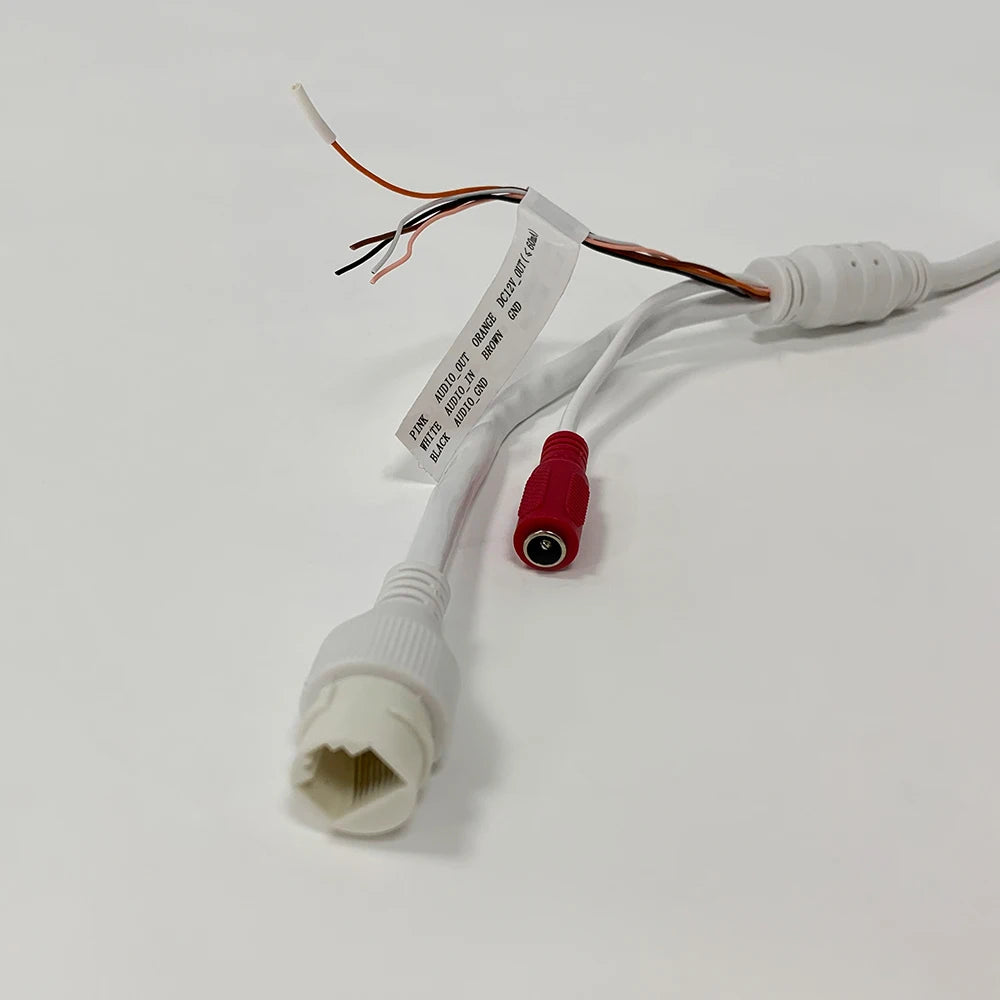

• Audio

  1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;

  1 output (line out), line level, output impedance: 600 Ω

• ResetYes

• Power Output12 VDC, max. 60 mA

•


• Event

•


• Basic EventMotion detection, video tampering alarm, exception

• Smart EventLine crossing detection,intrusion detection,region exiting detection,region entrance detection

• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,audible warning

•


• General

•


• Power12 VDC, Max. 9.2 W; PoE (802.3af)

• DimensionØ130.7 mm × 103.6 mm (Ø5.15" × 4.00")

• Weight: Approx. 560 g (1.23 lb.),With Package Weight: Approx. 780 g (1.72 lb.)

• Operating Condition-20 °C to 60 °C (-4 °F to 140 °F). Humidity 90% or less (non-condensing)

• General FunctionMirror, password protection

•


• Approval

•


• ProtectionIP66 (IEC 60529-2013), IK10, TVS 4000V lightning protection, surge protection and voltage transient protection

*Water and dust resistant (IP66) and vandal proof (IK10)

*Up to 20 m IR range ensures safety at night

*Built-in microphone and speaker for real-time audio security

*4x optical zoom allows for closer viewing of subjects in expansive areas

*Excellent low-light performance via powered-by-DarkFighter technology

* Focuses on human and vehicle classification based on deep learning

* High quality imaging with 4 MP resolution

4MP 4X IR Mini Outdoor Acusense PTZ Camera
